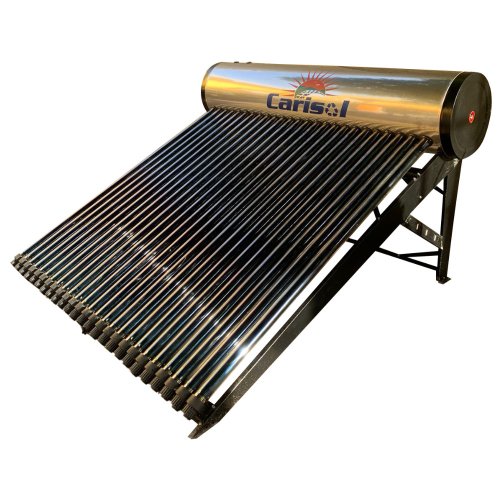

66G Evacuated Tube Solar Water Heater Carisol-PLTS ET HPTS 25 66G - 250L 66G Evacuated Tube Solar Water Heater Carisol-PLTS ET HPTS 25 66G - 250L

66G Evacuated Tube Solar Water Heater Carisol-PLTS ET HPTS 25 66G - 250L

Brand: Carisol   Model: Carisol-ETSWH-PLTS ET HPTS 25 66G - 250L
0 out of 5
Carisol's Choice
20K+ bought in past month
JMD 209,999.99
No Import Charges & $36.28 Shipping to Jamaica Details
Size84.00 x 19.00 x 20.00 (LxWxH)
Weight293.00 Kg
Made InChina
TypeEvacuated Tube
Number of Persons6 - 7 persons
Heat Retentionupto 120 hrs.
Warrantyupto 10yrs
SeriesPlatinum ( Advanced )
Capacity66 Gallon
See More


JMD 209,999.99
Shipping & Import Charges to Jamaica Details Delivery Tuesday, November 11 to Jamaica. Order within 14 hrs 50 mins
Location: Jamaica
In Stock


Ships fromCarisol
Sold byCarisolgroup
Payment3D Secure transation
ReturnsNo refund

Products related to this item

Deals on related products

Product information

Weight293 LBS
Dimensions96in x 18.8in x 48.6in
Working Pressure1.2 MPa (12 bar)
Country Of OriginUSA
Capacity66 Gal
Number of Persons6 - 7 persons
Key FeaturesAdvanced heating technology
Efficiency LevelExceptional efficiency
Warranty Period8 years
Heating CapacityMedium demand
Collector TypeAdvanced evacuated tubes
Inner Tank MaterialStainless Steel (Grade 316Ti-2 Exceptional)
Outer Tank MaterialStainless Steel (Grade 316Ti-2 Exceptional)
Heat Pipe Vacuum Tube Size58mm x 1800mm
Heat Pipe Vacuum Tube Glass MaterialHigh-Quality Borosilicate Glass
Heat Pipe MaterialCopper (Grade C12200)
Heat Pipe TypeTU1 Heat Pipe
Insulation Polyurethane Foam Density60 kg/m³
Heat Retention96 hours
Frame Mounting OptionsDual: Slope / Flat
Frame Tilt Angle30°
Frame MaterialPower Coated Galavanized Steel
Vacuum Degree< 5 x 10^-3 Pa
Absorbing Coating PropertyALN/ALN-SS/CU (High)
Emission Ratio≤ 3%
Transition Temperature35°C
Hurricane ResistanceUp to 200 km/h
Impact ResistanceIK08
Corrosion ResistanceExcellent (10/10) Products has an excellent corrosion resistance rating offer superior protection against rust and degradation. Making it ideal for harsh environments and long-term durability.
Condenser Size30 mm
Star Rating5 stars
Anti-Lime Scaling Internal ProtectionYes - Effective Tech: Max resistance, prevents tough lime scale in water heater, ensures peak performance & durability.
Anti-Lime Scaling External ProtectionIncluded - Two-Stage Protection: Stage 1 - Mineral Alteration, Stage 2 - Advanced Cleaning. Elevating your solar water heater improving it's performance, longevity and efficiency.
High Water Pressure ProtectionIncluded
CertificationCertified Quality / Award Winning - Solar Keymark, SRCC, ISO.CSA, Energy Star, AS/NZS 2742, Quality Star Award
Made of ManufactureChina
Installation Requirement"as a pre-requisite you will be required to have the following in place before the installation team visit you. 1. 1/2 inch Hot and Cold pipe in place on the roof directly in the installation area. 2. 1/2 inch Hot and Cold lock off on the pipes going up to the roof. 3. Standard Water supply from N.W.C, if using a Water Tank the tank must supply water pressure similar to N.W.C. 4. 220V Power Source with long enough cable length to be connected directly to system for back-up 5. Un shaded area for the unit installation"
Add On Items"Additional items that may or may not be needed depending on your location and if needed will come at an additional cost to you. 1. Hot and Cold Non-Return Valves 2. Pressure Reducing Valves 3. Roof Overlay"

Product description

66G Evacuated Tube Solar Water Heater - Carisol PLTS ET HPTS 25 66G / 250L

Overview:

The 66G Evacuated Tube Solar Water Heater by Carisol is a high-capacity and efficient solution for hot water supply. With advanced features and a large capacity, this solar water heater is designed to meet the needs of medium to large-sized households and businesses, providing a sustainable and cost-effective water heating system.

Features:
  • Rapid Heat Transfer: Special medium in the heat pipe enables energy transfer over 1000 times faster than copper.
  • Efficient Absorption: Highly efficient absorber increases performance for optimal water heating.
  • No Scaling: Evacuated tubes contain no water or water scale, ensuring durability even in extreme cold temperatures.
  • High Pressure Tolerance: Withstands up to 1.2 MPa pressure (depending on the series) and can be directly connected to the city water supply.
  • Durability: Can continue working even with several tubes broken, preventing water leakage from the storage tank.
  • Cold Climate Compatibility: Suitable for use in sunny days even in extreme cold climates.
Benefits:
  • High-Capacity Performance: Perfectly suited for medium to large-sized families or businesses with substantial hot water demands.
  • Energy Efficient: Reduces energy consumption for cost savings.
  • Reliable Performance: Made from durable materials for consistent hot water supply.
  • Environmentally Friendly: Utilizes clean solar energy for a greener and sustainable future.
  • Generous Warranty: Carisol offers a warranty for peace of mind.
Advantages:
  • Large Household Solution: Ideal for homes or businesses with significant hot water needs.
  • Efficiency: Ensures efficient water heating without wasting energy.
  • Quality Assurance: Manufactured by Carisol, a trusted name in solar water heating.
Conclusion:

The 66G Evacuated Tube Solar Water Heater from Carisol is a high-capacity and efficient choice for hot water generation. With its large capacity, advanced features, and eco-friendly benefits, this solar water heater is a practical and sustainable solution for meeting your hot water requirements.

[Certifications: SRCC, Solar Keymark, ISO, BIS, AS/NZS, CSTP, JET, SEIA, CSA, SECC, ESTIF, Bureau Veritas, T?V Rheinland, UL, NREL]
