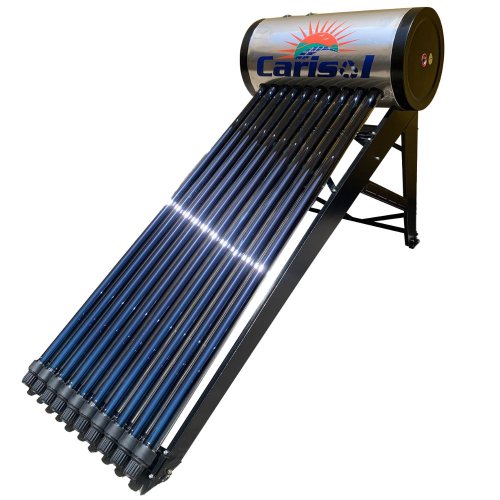

20G Evacuated Tube Solar Water Heater Carisol-UPLTS ET HPTS 8 20G - 75L 20G Evacuated Tube Solar Water Heater Carisol-UPLTS ET HPTS 8 20G - 75L

20G Evacuated Tube Solar Water Heater Carisol-UPLTS ET HPTS 8 20G - 75L

Brand: Carisol   Model: Carisol-2TSWH-UPLTS ET HPTS 8 20G - 75L
0 out of 5
Carisol's Choice
20K+ bought in past month
JMD 116,000.00
No Import Charges & $36.28 Shipping to Jamaica Details
Size39.00 x 19.00 x 20.00 (LxWxH)
Weight141.00 Kg
Made InChina
TypeEvacuated Tube
Number of Personsupto 2 persons
Heat Retentionupto 120 hrs.
Warrantyupto 10yrs
SeriesUltra Platinum ( Supreme )
Capacity20 Gallon
See More


JMD 116,000.00
Shipping & Import Charges to Jamaica Details Delivery Tuesday, November 11 to Jamaica. Order within 14 hrs 50 mins
Location: Jamaica
In Stock


Ships fromCarisol
Sold byCarisolgroup
Payment3D Secure transation
ReturnsNo refund

Products related to this item

Deals on related products

Product information

Weight141 LBS
Capacity20 Gal
Dimensions39 Inch X 19 Inch X 20 Inch
CertificationSolar Keymark, SRCC, ISO.CSA, Energy Star, AS/NZS 2732
Number of Personsupto 2 persons
Heat Retention120 hours
Working Pressure1.2 MPa (12 bar)
Country Of OriginUSA
Key FeaturesCutting-edge heating technology
Efficiency LevelSuperior efficiency
Warranty Period10 years
Heating CapacityHigh demand
Collector TypeSuperier evacuated tubes
Inner Tank MaterialStainless Steel (Grade 316Ti-5 Superior)
Outer Tank MaterialStainless Steel (Grade 316Ti-5 Superior)
Heat Pipe Vacuum Tube Size58mm x 1800mm
Heat Pipe Vacuum Tube Glass MaterialPremium Borosilicate Glass
Heat Pipe MaterialCopper (Grade C12200)
Heat Pipe TypeHeat Pipe with Heat-transfer Fins
Insulation Polyurethane Foam Density80 kg/m³
Frame Mounting OptionsDual: Slope / Flat
Frame Tilt Angle30°
Frame MaterialPower Coated Galavanized Steel
Vacuum Degree< 5 x 10^-3 Pa
Absorbing Coating PropertyALN/ALN-SS/CU (Premium)
Emission Ratio≤ 2%
Transition Temperature40°C
Hurricane ResistanceUp to 220 km/h
Impact ResistanceIK09 (Best)
Corrosion ResistanceExcellent (10/10) Products has an excellent corrosion resistance rating offer superior protection against rust and degradation. Making it ideal for harsh environments and long-term durability.
Condenser Size35 mm
Star Rating5 stars
Anti-Lime Scaling Internal ProtectionYes - Effective Scale Defense: Our leading tech resists tough lime buildup in your heater, ensuring peak efficiency and longer life.
Anti-Lime Scaling External ProtectionIncluded - Three-Stage Protection: Stage 1 - Proactive Prevention, Stage 2 - Intelligent Mineral Conversion, Stage 3 - Thorough Cleaning. Elevate your solar water heater defense against calcium, unleashing it's ultimate performance, efficiency and durability.
High Water Pressure ProtectionIncluded
Made of ManufactureChina
Installation Requirement"as a pre-requisite you will be required to have the following in place before the installation team visit you. 1. 1/2 inch Hot and Cold pipe in place on the roof directly in the installation area. 2. 1/2 inch Hot and Cold lock off on the pipes going up to the roof. 3. Standard Water supply from N.W.C, if using a Water Tank the tank must supply water pressure similar to N.W.C. 4. 220V Power Source with long enough cable length to be connected directly to system for back-up 5. Un shaded area for the unit installation"
Add On Items"Additional items that may or may not be needed depending on your location and if needed will come at an additional cost to you. 1. Hot and Cold Non-Return Valves 2. Pressure Reducing Valves 3. Roof Overlay"
ModelULPLTS ET HPTS 8 20G / 75L

Product description

Product Name: 20G Evacuated Tube Solar Water Heater - Carisol PLTS ET HPTS 8 20G / 75L

Overview:

The 20G Evacuated Tube Solar Water Heater by Carisol is a compact and efficient solution for hot water supply. With advanced features and reliable performance, this solar water heater meets the needs of small households and businesses seeking an eco-friendly and cost-effective water heating system.

Features:
  • Rapid Heat Transfer: Special medium in the heat pipe enables energy transfer over 1000 times faster than copper.
  • Efficient Absorption: Highly efficient absorber increases performance for optimal water heating.
  • No Scaling: Evacuated tubes contain no water or water scale, ensuring durability even in extreme cold temperatures.
  • High Pressure Tolerance: Withstands up to 1.2 MPa pressure (depending on the series) and can be directly connected to the city water supply.
  • Durability: Can continue working even with several tubes broken, preventing water leakage from the storage tank.
  • Cold Climate Compatibility: Suitable for use in sunny days even in extreme cold climates.
Benefits:
  • Compact Design: Ideal for small spaces and easy installation.
  • Energy Efficient: Reduces energy consumption for cost savings.
  • Reliable Performance: Made from durable materials for consistent hot water supply.
  • Environmentally Friendly: Utilizes clean solar energy for a greener and sustainable future.
  • Generous Warranty: Carisol offers a warranty for peace of mind.
Advantages:
  • Small Household Solution: Perfectly suited for small families or businesses with low hot water demands.
  • Efficiency: Ensures efficient water heating without wasting energy.
  • Quality Assurance: Manufactured by Carisol, a trusted name in solar water heating.
Conclusion:

The 20G Evacuated Tube Solar Water Heater from Carisol is a compact and efficient choice for hot water generation. With its small footprint, reliable features, and eco-friendly benefits, this solar water heater is an excellent option for those seeking a cost-effctive and sustainable water heating solution.

[SRCC, Solar Keymark, ISO, BIS, AS/NZS, CSTP, JET, SEIA, CSA, SECC, ESTIF, Bureau Veritas, T?V Rheinland, UL, NREL]
